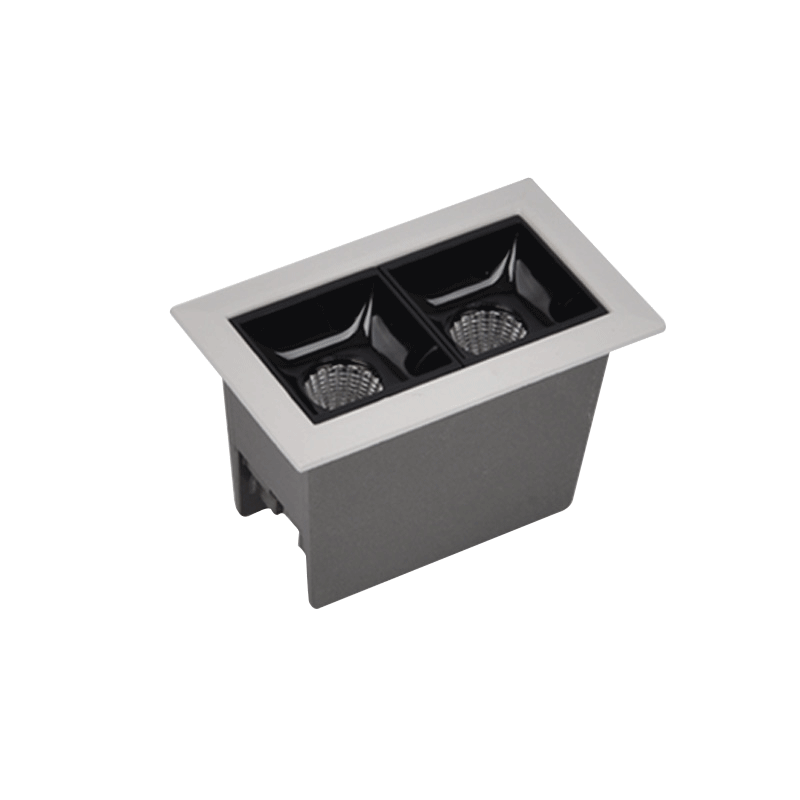

Model No: DL130-2
Wattage:4W
Input Voltage: 100-240V
LED Type: CREE COB
Dimension: 75*45*49mm
Cut-out: 68*37mm
CCT: 3000-5000K
CRI:80+/90+
Lumen Output: 360Lm
Beam Angle: 15°/30°/45°
IP Rating: IP44
Dimmable: YES
Frame Colour:White/Black
PRODUCT DESCRIPTION
High-quality brand-name LED COB chip, high luminous efficiency, CRI>80/90, low heat dissipation coefficient, providing uniform and comfortable lighting layout patent design. Using high-quality aluminum heat sink, ingenious shape, increasing the heat dissipation space, a variety of carefully selected, can replace the lighting ring and decorative ring, can choose two precision optical design according to different application standards, wide angle to make the light uniform, natural comfort , anti-glare design. High quality isolated constant current drive, high quality. Dimming, intelligent control features available in a range of 2.5"-8", power range from 2W to 15W up to 35,000 hours, 3/5 year warranty
1. High efficiency optical lens with 1*2W LED, offering high lumen output
2. Anti-glare PMMA optical lens come out with uniformity and comfortable lighting
3. 2W low power consumption COB cabinet luminaries, perfect in anti-glare light effect and CRI>82
4. 350mA DC series connection,suitable for TRAIC dimmable LED driver
5. With extra single twist springs bracket for open ceiling mounting.
6. IP44 suitable for indoor usage
8. Certifications with CE and RoHS Directive-compliant by SGS
Product Name | Code | Power | Dimension | Cutout size | Voltage | LED Type | Beam Angle | Lumens | CRI | Color Temperature | IP Rating | Frame Colour | DIM |
Mini LED Downlights | DL130-2 ( signle color ) | 4W | Ø75X45X49mm | Ø68*37mm | AC100-240V | CREE | 15°/30°/45° | 360lm | >80+/90+ | 3000K-5000K | IP44 | White/Black | Traic dim |
Mini LED Downlights | DL130-2 (3 Color chagne by switch) | 4W | Ø75X45X49mm | Ø68*37mm | AC100-240V | CREE | 15°/30°/45° | 360lm | >80+/90+ | 3000K-5000K | IP44 | White/Black | Traic dim |
Mini LED Downlights | DL130-2 Smart | 4W | Ø75X45X49mm | Ø68*37mm | AC100-240V | CREE | 15°/30°/45° | 360lm | >80+/90+ | 3000K-5000K | IP44 | White/Black | APP and remote |
